Types of HDMI Cables
In the realm of audio and video interfaces, HDMI (High-Definition Multimedia Interface) cables reign supreme. These cables are the unsung heroes that breathe life into our immersive entertainment experiences. Over my tenure as a tech expert, I’ve witnessed HDMI evolve, catering to different devices and purposes. Let’s demystify the various types, something I wish I had when I first delved into this digital domain.

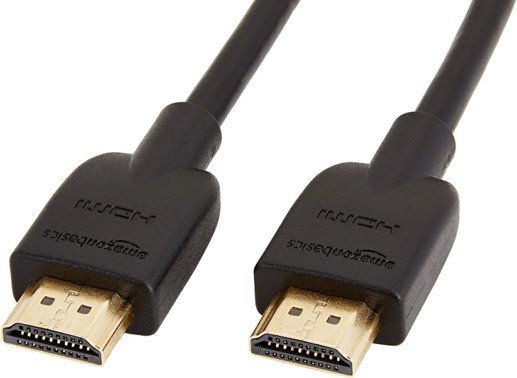

Type A (Standard)
If I had a dime for every time I used a Type A HDMI cable, I’d have a hefty sum. The Type A, often known as the Standard HDMI, is the most ubiquitous form. With 19 pins and a width of 13.9 mm, it’s the workhorse behind most HDTVs, game consoles, and AV receivers. My experience has been that this type fits the needs of the vast majority of home entertainment systems. It can handle video resolutions of up to 1080p. However, as we push the boundaries of resolution, newer versions of Type A have emerged, compatible with 4K and even 8K content.
Type C (Mini)
Ah, the Mini HDMI or Type C! I fondly remember the first time I encountered it on a high-end DSLR camera. With its 19 pins packed into a smaller 10.42 mm connector, it’s the perfect solution for devices where space is at a premium, like tablets and some laptops. While it has the same number of pins as the standard HDMI, its compact size has made it a favorite for portable devices. I personally prefer using it for quick on-the-go setups, given its perfect balance of size and functionality.
Type D (Micro)
Even smaller than the Mini is the Type D or Micro HDMI. Measuring a mere 6.4 mm in width, it reminds me of the time I had to hook up a smartphone to a projector. It was the Micro HDMI that came to the rescue. Primarily found in smartphones and tablets, it’s an engineering marvel to think they’ve managed to fit all 19 pins in such a tiny connector. If you’re venturing into mobile presentations or streaming, this is your go-to choice. My experience has been nothing short of amazing, considering the compactness and the quality it delivers.
Automotive (Type E)
Diving into the world of vehicular tech, the Type E or Automotive HDMI was a revelation. Designed explicitly for cars, this connector boasts a locking mechanism to ensure it doesn’t come loose with the vehicle’s movement. I was once involved in an ambitious car entertainment setup project, and the reliability of Type E HDMI made all the difference. It’s not just for transmitting audio and video; it ensures your in-car entertainment system functions seamlessly, even on the bumpiest roads.
Type B (Dual Link) – Never used
The enigma in the HDMI world, Type B or Dual Link, is like that luxury item we all hear about but never see. Designed with a whopping 29 pins, it was meant to support very high-resolution displays beyond what the standard HDMI could handle. But here’s the kicker: it never saw the light of day in consumer products. The rapid evolution of Standard HDMI made Type B redundant before it could make a mark. Though it never graced my workbench, it’s a testament to how fast technology evolves.
HDMI Types by Generation
HDMI 1.0 / 1.1 / 1.2 (2002 Onwards)
Introduced at the end of 2002, HDMI 1.0 marked a transformative era in the realm of digital audio-visual transmission. With a bandwidth capability of 4.9 Gbit/s, it was ground-breaking for its time. This initial specification made a significant stride by facilitating uncompressed audio and video data between a source device and compatible displays. The foundation laid by HDMI 1.0 was pivotal for the entertainment industry.
HDMI 1.1, a quick follow-up in May 2004, was noteworthy for adding support for DVD audio. This essentially enhanced the depth of audio experiences while maintaining the integrity of the video feed. My first interaction with HDMI 1.1 took me by surprise, given how it simplified the once cumbersome task of audio transmission.
HDMI 1.2 and 1.2a refined this further. A distinctive feature was its support for One Bit Audio format, which catered specifically to Super Audio CDs (SACDs). Moreover, it was during this era that HDMI began its liaison with PC sources, enhancing the user experience twofold. I remember my initial attempts to synchronize my PC with my entertainment system – HDMI 1.2 made it a breeze.
HDMI 1.3/1.4 (2006 Onwards)
Fast forward to 2006, and HDMI 1.3 emerged as a veritable game-changer. Boasting an impressive bandwidth of 10.2 Gbit/s, it allowed for deep color modes and higher resolutions, including 1440p. Another innovation was the introduction of a new mini connector for devices with smaller interfaces, like cameras and laptops.
HDMI 1.4 soon followed and raised the bar with several commendable features. The introduction of an Ethernet channel enabled devices to share internet connections without the need for separate cables. The 1.4 version also brought forth the Audio Return Channel (ARC) that enabled downstream audio to be sent to an audiovisual receiver. Moreover, 3D over HDMI for gaming and home theater became possible. My experiences with home theater setups were never the same after this, with 3D content being seamlessly delivered.
HDMI 2.0 (2013 onwards)
By Sep 2013, the digital landscape was ripe for the inception of HDMI 2.0. With a doubled bandwidth of 18 Gbit/s, it introduced support for 4K resolution at 60Hz, making ultra-high-definition viewing a mainstream reality. It also expanded audio support, allowing up to 32 audio channels. One of its underappreciated features, in my opinion, was the dynamic synchronization of video and audio streams, ensuring impeccable lip sync. From my professional stance, HDMI 2.0 set the gold standard for what a holistic entertainment experience should feel like.
HDMI 2.1 (2017 onwards)
The latest iteration as of 2017, HDMI 2.1, is nothing short of revolutionary. It’s a giant leap forward, offering a staggering bandwidth of 48 Gbit/s. This has facilitated support for resolutions as high as 10K, and refresh rates for 4K up to a smooth 120Hz. The introduction of the Enhanced Audio Return Channel (eARC) has refined audio delivery, ensuring the best sound quality. From a gamer’s perspective, the Variable Refresh Rate (VRR) and Quick Frame Transport (QFT) have drastically reduced latency, making gaming more immersive. Having set up numerous 4K entertainment systems, HDMI 2.1 has been a boon, offering unmatched clarity and synchronicity.
Over the years, HDMI has transformed our viewing and listening experiences. Its evolution reflects the rapid pace of technological advancement, and with each version, our interaction with digital content becomes ever more seamless and enriched.
FAQs
Why are there different HDMI versions like 1.0, 2.0, and 2.1?
Over the years, as technology advanced, the HDMI specification was refined to accommodate the latest in video resolutions, color technologies, and audio standards. Each version brought its own set of enhancements to cater to the ever-evolving digital entertainment landscape.
What made HDMI 1.3 a game-changer in its time?
HDMI 1.3 introduced a substantial bandwidth increase, supporting up to 10.2 Gbit/s. This facilitated deep color modes, higher resolutions, and a mini connector for devices with smaller interfaces. My personal experience setting up a home theater in that era was transformed, especially with the advent of 3D over HDMI.
Is HDMI 2.0 sufficient for 4K viewing?
Absolutely. HDMI 2.0 was specifically designed with 4K in mind, offering support for 4K resolution at 60Hz. The 18 Gbit/s bandwidth ensured that ultra-high-definition content could be transmitted seamlessly. In my professional setups, I found HDMI 2.0 perfectly adept at delivering a crisp 4K experience.
How does HDMI 2.1 elevate the gaming experience?
HDMI 2.1 is a gamer’s dream, introducing features like Variable Refresh Rate (VRR) and Quick Frame Transport (QFT). These significantly reduce latency, making for smoother gameplay. Personally, when I first tried a console with HDMI 2.1, the difference in responsiveness was palpable.
Why was HDMI 1.4 significant for internet-enabled devices?
HDMI 1.4 brought with it the Ethernet channel, which allowed devices to share internet connections. This eliminated the need for separate cables, streamlining the setup process. I recall integrating smart TVs with this feature, appreciating the clutter-free arrangement it offered.
Are higher HDMI versions backward compatible?
Yes, HDMI versions are designed to be backward compatible. This means newer cables can work with older devices, though you’ll be limited to the capabilities of the oldest version in the setup. For instance, using an HDMI 2.1 cable with a 1.4 device will limit you to the features of 1.4.
How does the Enhanced Audio Return Channel (eARC) in HDMI 2.1 differ from the older ARC?
The eARC in HDMI 2.1 offers a significant boost in bandwidth and speed. This means it can handle higher-quality audio formats, ensuring the best sound experience. When I first sampled a sound system using eARC, the audio depth and clarity were noticeably superior.
Is there a visible difference between 4K at 30Hz and 4K at 60Hz?
Definitely. The refresh rate, measured in Hertz (Hz), denotes how many times the screen is redrawn per second. A higher refresh rate, like 60Hz, offers smoother motion, particularly noticeable in fast-paced scenes or while gaming. In my numerous display tests, the fluidity difference between 30Hz and 60Hz is evident, especially in action-packed sequences.
